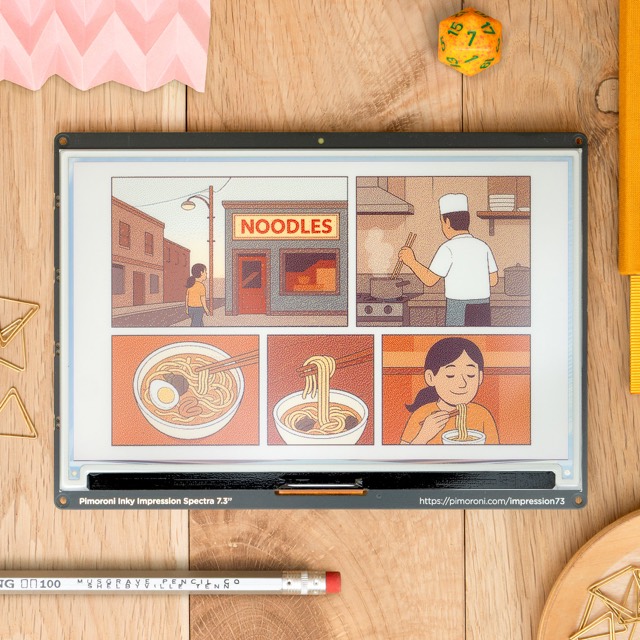

Pimoroni Inky Impression 7.3" 7-colour
The bigger Inky Impression, including the 2025 Spectra 6 edition.
Official Pimoroni store
Official store page for this device.
- Vendor
- Pimoroni
- Model
- Inky Impression 7.3" (7-colour)
- Technology
- E-ink
- Colors
- 7 colors (ACeP)
- Resolution
- 800×480 px
- Size
- 7.3″ diagonal
- Interface
- SPI HAT
- Platforms
- Raspberry Pi
- Status
- 🟢 Confirmed working
- Buttons
- 4 (usable in scenes)
- FrameOS driver
pimoroni.inky_impression_7_3
Part of the FrameOS device database. Spotted an error, or tested this panel? Edit this page on GitHub - it's a markdown file.
- Manufacturer: Pimoroni
- Device: Inky Impression 7.3"
- Extra: 4 physical buttons (usable as scene event triggers in FrameOS)
Like its 5.7" sibling, the 7.3" Inky Impression is plug-and-play: panel and driver board are one unit that slots onto the GPIO header. Both the original 7-colour version and the 2025 Spectra 6 edition are supported with native drivers - there's even a driver for the 13.3" 2025 edition.
Setup
- Plug the HAT onto the Pi, flash the SD card, add the frame in the backend.
- Select the matching Pimoroni Inky Impression 7.3" driver (original or 2025 edition).
- Save & deploy. The display blinks through its refresh cycle and shows your scene.
For a full build walkthrough - including 3D-printed cases for these panels - watch the Spectra 6 build video.
