FrameOSSeeed reTerminal D1001

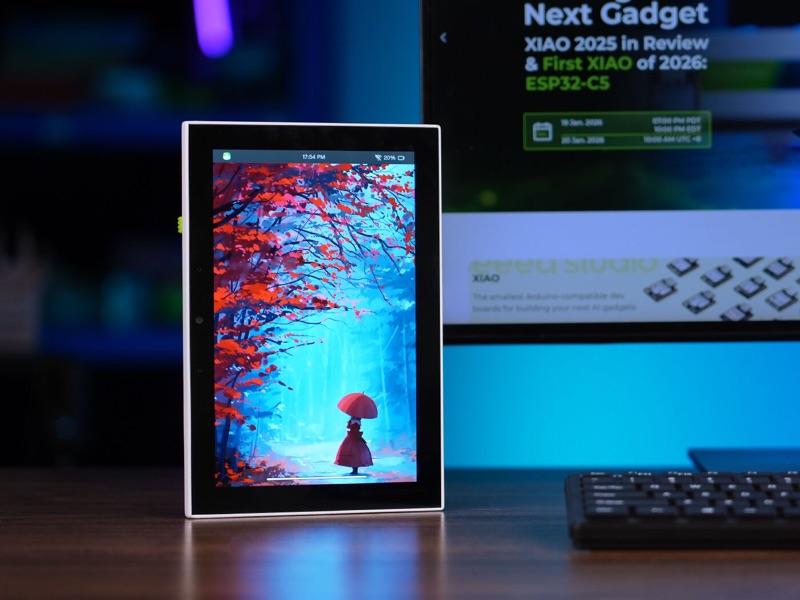

Seeed Studio reTerminal D1001 - an 8" 800x1280 touch LCD with an ESP32-P4 and 32 MB of PSRAM. Not supported by FrameOS yet.
Official Seeed Studio store
Official store page for this device.
Manufacturer docs & datasheets
- Vendor
- Seeed Studio
- Model
- reTerminal D1001
- Technology
- LCD
- Colors
- Full RGB
- Resolution
- 800×1280 px
- Size
- 8″ diagonal
- Interface
- ESP32-P4 board (MIPI-DSI)
- Platforms
- None yet
- Status
- ⚪ Not supported yet
- FrameOS driver
- None yet
Part of the FrameOS device database. Spotted an error, or tested this panel? Edit this page on GitHub - it's a markdown file.
The Seeed reTerminal D1001 is the first of Seeed's LCD reTerminals: an 8" 800×1280 capacitive touch screen on MIPI-DSI, driven by an ESP32-P4 (dual-core RISC-V at 400 MHz) with 32 MB of PSRAM and an ESP32-C6 for Wi-Fi 6 and Bluetooth, plus a 2 MP camera, two microphones, a speaker, a microSD slot and a 2500 mAh battery.
Status
⚪ Not supported yet. The FrameOS firmware is built for the ESP32-S3 and ESP32-C3 and drives e-paper panels. An ESP32-P4 build with a MIPI-DSI LCD driver is a port we haven't done yet. With 32 MB of PSRAM the board has the memory for it, and full-color LCD scenes are something FrameOS already renders on a Raspberry Pi over HDMI.
Want it? Say so on GitHub or Discord - it helps us decide what to port next.
