FrameOSSeeed XIAO 7.5" ePaper Panel

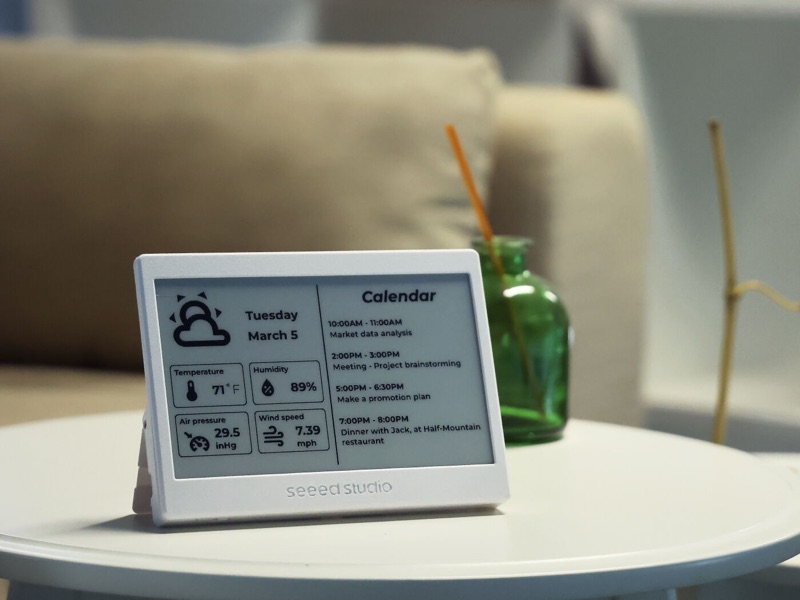

Seeed Studio XIAO 7.5" ePaper Panel - a finished 7.5" 800x480 black/white e-ink display with a XIAO ESP32-C3 and a 2000 mAh battery, running FrameOS as a thin client.
Official Seeed Studio store
Official store page for this device.
Manufacturer docs & datasheets
- Vendor
- Seeed Studio
- Model
- XIAO 7.5" ePaper Panel
- Technology
- E-ink
- Colors
- Black/White
- Resolution
- 800×480 px
- Size
- 7.5″ diagonal
- Interface
- ESP32-C3 board
- Platforms
- ESP32-C3
- Status
- 🟡 Should work
- Buttons
- 1 (usable in scenes)
- FrameOS driver
waveshare.EPD_7in5_V2
Part of the FrameOS device database. Spotted an error, or tested this panel? Edit this page on GitHub - it's a markdown file.
The XIAO 7.5" ePaper Panel is a finished desk display: a 7.5" 800×480 black/white panel in a white case with a stand, driven by a XIAO ESP32-C3, with a 2000 mAh battery that Seeed rates at about three months in deep sleep.
The C3 has no PSRAM, so FrameOS runs it as a thin client: your backend renders the scene and the board draws it, the same way as the TRMNL OG. FrameOS Cloud can't render for thin clients yet, so this one needs a self-hosted backend. If you want a 7.5" black/white frame that renders by itself, the reTerminal E1001 and the TRMNL 7.5" DIY Kit do.
Setup
- In the FrameOS backend, create a frame with Flash embedded device.
- Choose ESP32-C3, select the Seeed XIAO 7.5" ePaper Panel preset (
seeed_xiao_epaper_7in5) and enter your WiFi details. - Flash it over USB from the browser, then install scenes as usual.
The BOOT key (GPIO 9) arrives in scenes as a button event. FrameOS doesn't read this board's battery.
Pin map
| Signal | GPIO |
|---|---|
| CS | 3 |
| DC | 5 |
| RST | 2 |
| BUSY | 4 |
| SCK | 8 |
| MOSI | 10 |
Status
🟡 Should work, not yet confirmed on real hardware. The pins are from Seeed's ESPHome guide for this panel. Tell us on GitHub or Discord if you try it.
