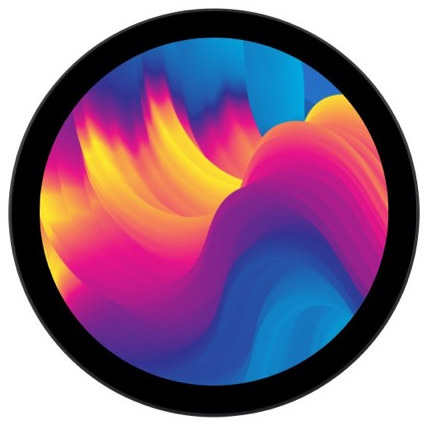

Waveshare 5" round 1080×1080 LCD
A round HDMI LCD, configured via custom HDMI timings.
Official Waveshare store
Official store page for this device.
- Vendor
- Waveshare
- Model
- 5" round 1080×1080 LCD
- Technology
- LCD
- Colors
- Full RGB
- Resolution
- 1080×1080 px
- Size
- 5″ diagonal
- Interface
- HDMI
- Platforms
- Raspberry Pi
- Status
- 🟢 Confirmed working
- FrameOS driver
framebuffer
Part of the FrameOS device database. Spotted an error, or tested this panel? Edit this page on GitHub - it's a markdown file.
- Device: Waveshare 5" round 1080×1080 LCD (wiki)
- Driver: HDMI / Framebuffer
This display connects over HDMI, so it uses the framebuffer driver. It needs custom HDMI timings:
add the following to the end of /boot/config.txt and reboot:
hdmi_group=2
hdmi_mode=87
hdmi_pixel_freq_limit=356000000
hdmi_timings=1080 0 68 32 100 1080 0 12 4 16 0 0 0 60 0 85500000 0Power control
Enable the Fake KMS driver:
sudo sed -i '/dtoverlay=vc4-kms-v3d/s/kms/fkms/' /boot/config.txtThen toggle the display from the command line:
vcgencmd display_power 0 # off
vcgencmd display_power 1 # on
vcgencmd display_power | grep "display_power=0" >/dev/null && echo "off" || echo "on"
