FrameOSWaveshare 7.5" 800×480 e-Paper
The classic black-and-white workhorse panel, plus its 3-color variants.
Official Waveshare store
Official store page for this device.
- Vendor
- Waveshare
- Model
- 7.5" (V2) e-Paper
- Technology
- E-ink
- Colors
- Black / White
- Resolution
- 800×480 px
- Size
- 7.5″ diagonal
- Interface
- SPI
- Platforms
- Raspberry Pi · ESP32-S3
- Status
- 🟢 Confirmed working
- FrameOS driver
waveshare.EPD_7in5_V2
Part of the FrameOS device database. Spotted an error, or tested this panel? Edit this page on GitHub - it's a markdown file.

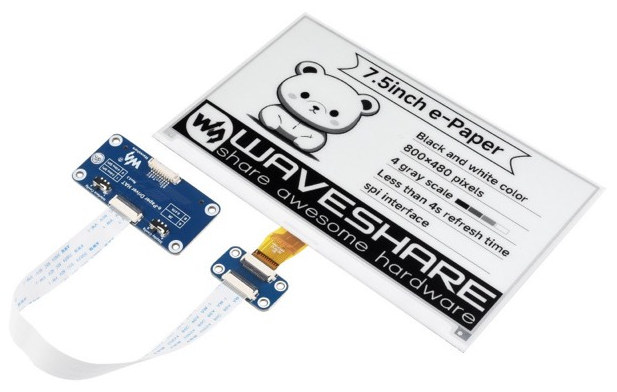

- Device: Waveshare 7.5" e-Paper HAT
- Variants: black/white (V2), black/white/red (B V2)
A popular, affordable starter panel. The HAT plugs directly onto the Pi's GPIO header - or connect the included adapter board with the supplied cable.
Setup
- Connect the panel to the Pi.
- Select the matching Waveshare 7.5" driver variant when adding the frame (V2 for current black/white panels, B V2 for the 3-color version).
- Save & deploy. The display will blink through its refresh cycle and show your scene.
If the image looks wrong, try the other 7.5" driver variants - Waveshare has shipped several revisions under the same product name.
ESP32 support
This panel is supported by the FrameOS ESP32 firmware: wire it to an ESP32-S3 over SPI, flash from the browser, and scenes render on the microcontroller itself - with over-the-air updates and an optional deep-sleep battery mode. Pick the exact Waveshare 7.5" driver variant when building firmware; each ESP32 image contains one selected panel driver.
